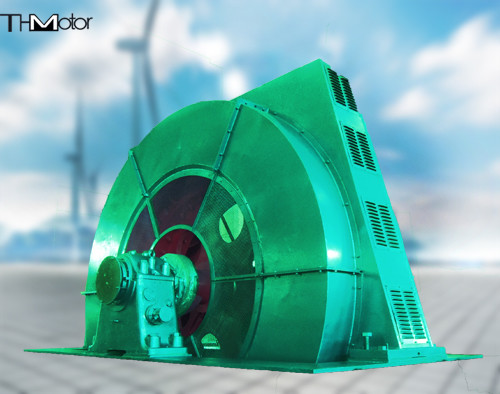

Taw 8000kw Explosion Proof AC Synchronous Motor 18 Poles For Chemical Industry

Name: Taw 8000kw Explosion Proof AC Synchronous Motor 18 Poles For Chemical Industry
Brand: THMotor
Price: 20000 USD

China Taw 8000kw Explosion Proof AC Synchronous Motor 18 Poles For Chemical Industry wholesale

Brand Name : THMotor

Model Number : T 7000

Certification : CE

Place of Origin : China

MOQ : 1set

Price : USD 20000-100000

Supply Ability : 100SET/YEAR

Delivery Time : 70DAYS

Packaging Details : Seaworthy packing

Product name : Taw 8000kw 18poles Ac Synchronous Motor Explosion-Proof Motor For Chemical Industry

Power Range : 1000-12000kw

Voltage : 3kv-11kv

Speed range : 1000rpm-1500rpm

Poles : 4,6

Frequency : 50hz,60hz

Cooling method : IC37,IC81W

IP rate : IP44,IP54,IP55

Contact Now

Taw 8000kw 18poles Ac Synchronous Motor Explosion-Proof Motor For Chemical Industry

TAW series increased safety type brushless excitation synchronous motor
Power range: 250kW～10000kW
Number of poles: 12 to 30. If there are special needs, it can be implemented according to the design.
Explosion-proof mark: ExeIICT3 Gc
Rated voltage: 6000V, 10000V, etc.
Technical features: high efficiency and energy saving, beautiful appearance, low vibration, low noise, high protection level, high safety, convenient use and maintenance.
Application fields: drive large-scale mechanical equipment such as reciprocating compressors, widely used in petroleum, petrochemical, chemical, fertilizer, coal, natural gas and other industries, working in the explosive gas environment of "2" zone.

Technical Data(6kv)

Power	1800-12000kw	IP	IP44
Ist	4.55-6.05	Cooling Method	IC91W
Voltage	380-11000v	Poles	10,12,16,32
Frequency	50HZ/60HZ	Insulation class	F;H
Speed	150/500RPM	Efficiency	96.4-97.7%
P.F.	0.84-0.85	AT	-15-40℃

Technical Data(10kv)

Power	2000-36000kw	IP	IP44
Ist	4.69-6.65	Cooling Method	IC91W
Voltage	380-11000v	Poles	10,12,16,32
Frequency	50HZ/60HZ	Insulation class	F;H
Speed	150/500RPM	Efficiency	96.4-97.7%
P.F.	0.84-0.85	AT	-15-40℃
